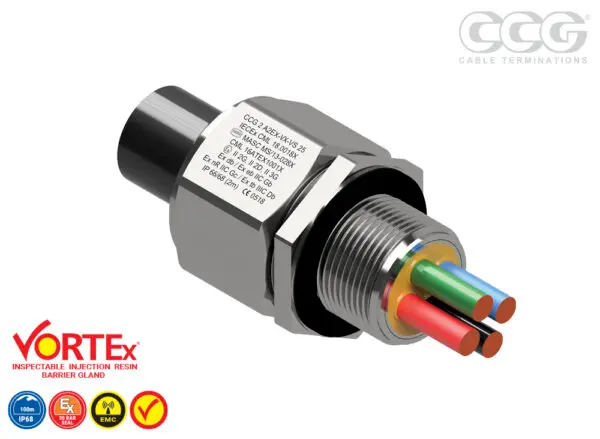

CCG - A2EX-VS VORTEx BARRIER COMPRESSION GLAND
The CCG A2EX‑VS VORTEx Barrier Compression Gland is intended for hazardous area installations where flameproof and increased safety protection is required. It provides a secure and reliable method of terminating cables into electrical equipment while maintaining enclosure integrity and preventing the transmission of gases or flames through the cable entry system.
The gland features a barrier compression design suitable for unfilled unarmoured copper tape braided and lead sheathed cable, including single or multi-core unfilled unarmoured copper tape, braided, or lead sheathed cable constructions. It is designed to terminate the cable sheath and conductors using an appropriate barrier compound, creating a controlled seal around individual cores. The construction provides strong mechanical cable retention through compression, with enclosure fixing achieved via a locknut arrangement. When correctly installed, the gland supports effective sealing, electrical continuity, and reliable performance in demanding hazardous area environments.
Packing Quantities
- M16 - M20 Glands : Packs of 20
- M25 - M40 Glands : Packs of 10
- M50 Glands : Packs of 5
- M63 to M75 : Packs of 2
Key Features
- Barrier compression design for hazardous area installations
- Suitable for unfilled unarmoured copper tape braided and lead sheathed cables
- Supports single and multi-core cable constructions
- Secure mechanical retention with locknut fixing
- Designed to maintain enclosure integrity in Ex applications
Applications
- Hazardous area electrical equipment
- Flameproof and increased safety enclosures
- Process, oil, and petrochemical facilities
- Industrial control and junction boxes
- Equipment requiring barrier sealing of unarmoured cables
Brand
CCG – A2EX‑VS VORTEx Barrier Compression Gland
