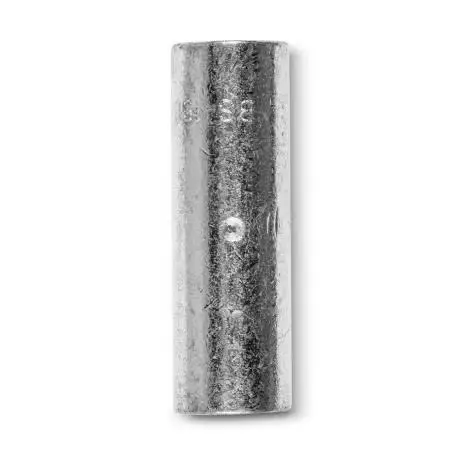

These non-insulated copper crimp links provide a reliable method of joining stranded to fine-stranded copper cables in electrical power, control and distribution applications. The range covers conductor sizes from 1.5mm² to 630mm², supporting everything from smaller control wiring through to large power cables.
Manufactured from electrical-grade copper with an electro-tinned finish, the links provide high conductivity and corrosion resistance. A long-barrel design, entrance chamfer and centre dimpling assist with conductor insertion, alignment and accurate crimp positioning during installation.
Key Features
- Suitable for stranded to fine-stranded copper cable
- Electrical-grade copper construction
- Electro-tinned finish for conductivity and corrosion resistance
- Long barrel for secure conductor engagement
- Entrance chamfer assists cable insertion
- Centre dimpling supports accurate crimp positioning
- Broad conductor range from 1.5mm² to 630mm²
- Compatible with thin, medium and thick-wall heat shrink
- Suitable for operating temperatures from -55°C to +155°C
- Conforms to IS 191 Part V GR.ETP specifications
Applications
- Joining copper power cables
- Cable extensions and repairs
- Switchboards and electrical panels
- Industrial machinery and equipment
- Mining and infrastructure installations
- Power distribution systems
- Control and instrumentation wiring
- Commercial and industrial electrical work
Specifications
- Product Type: Non-insulated copper crimp link
- Material: Electrical-grade copper
- Finish: Electro-tinned
- Cable Compatibility: Stranded to fine-stranded copper conductors
- Conductor Size Range: 1.5mm² to 630mm²
- Barrel Design: Long barrel
- Entry Design: Chamfered conductor entrance
- Crimp Guide: Centre dimpling
- Operating Temperature: -55°C to +155°C
- Insulation: Non-insulated
- Recommended Insulation Method: Appropriately sized heat shrink tubing
- Standard: IS 191 Part V GR.ETP
