Strut provides a strong, adaptable support framework for electrical, mechanical and cable-management installations. Manufactured in Australia for industrial and commercial projects, the range can be combined with compatible channel nuts, brackets and fittings to construct equipment supports, service frames, cable supports and suspended mounting systems.
The range includes 41.3mm deep B1000 channel and compact 21.6mm deep B3300 channel, with both plain and slotted configurations available. Manufactured from 2.5mm mild steel and supplied in standard 6-metre lengths, the channels are offered in several finishes to accommodate different installation environments and corrosion-protection requirements.
Key Features
- Australian-made cable-support channel
- Strong 2.5mm mild-steel construction
- Available in standard and shallow channel profiles
- Plain and slotted configurations available
- Slotted profiles allow flexible positioning of compatible fixings
- Supplied in standard 6-metre lengths
- Compatible with channel nuts, brackets and fittings
- Suitable for building modular support structures
- Multiple finishes available for different environments
- Powder coating and special finishes available by request
- Engineered load and deflection data available for each profile
Applications
- Cable and electrical service supports
- Conduit and pipe supports
- Mechanical-service installations
- Suspended support systems
- Equipment mounting frames
- Electrical switchrooms and plant rooms
- Commercial building services
- Industrial and manufacturing facilities
- Mining and resources infrastructure
- Oil and gas installations
- Construction and civil projects
Specifications
- Product Type: Steel strut and support channel
- Material Thickness: 2.5mm
- Standard Length: 6m
- Standard Channel Profile: 41.3 × 41.3mm

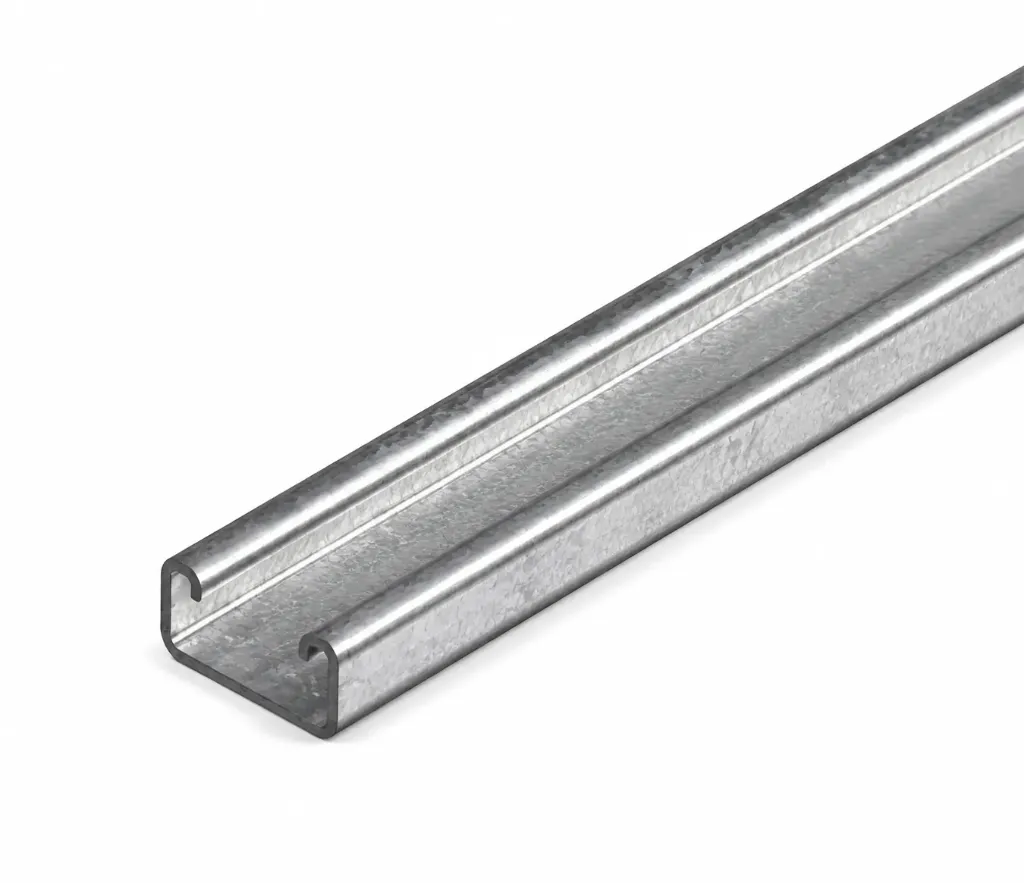

- Shallow Channel Profile: 41.3 × 21.6mm
- Available Configurations: Plain and slotted
- Slotted Channel Spacing: 50mm typical
- Slot Width: 7mm
- B1000 Plain Channel Weight: Approximately 15.7kg per 6m length
- B1000 Slotted Channel Weight: Approximately 13.9kg per 6m length
- B3300 Plain Channel Weight: Approximately 10.9kg per 6m length
- B3300 Slotted Channel Weight: Approximately 9.3kg per 6m length
- Load Capacity: Varies according to channel profile, configuration and unsupported span; refer to the relevant technical data sheet before designing or installing the support system
