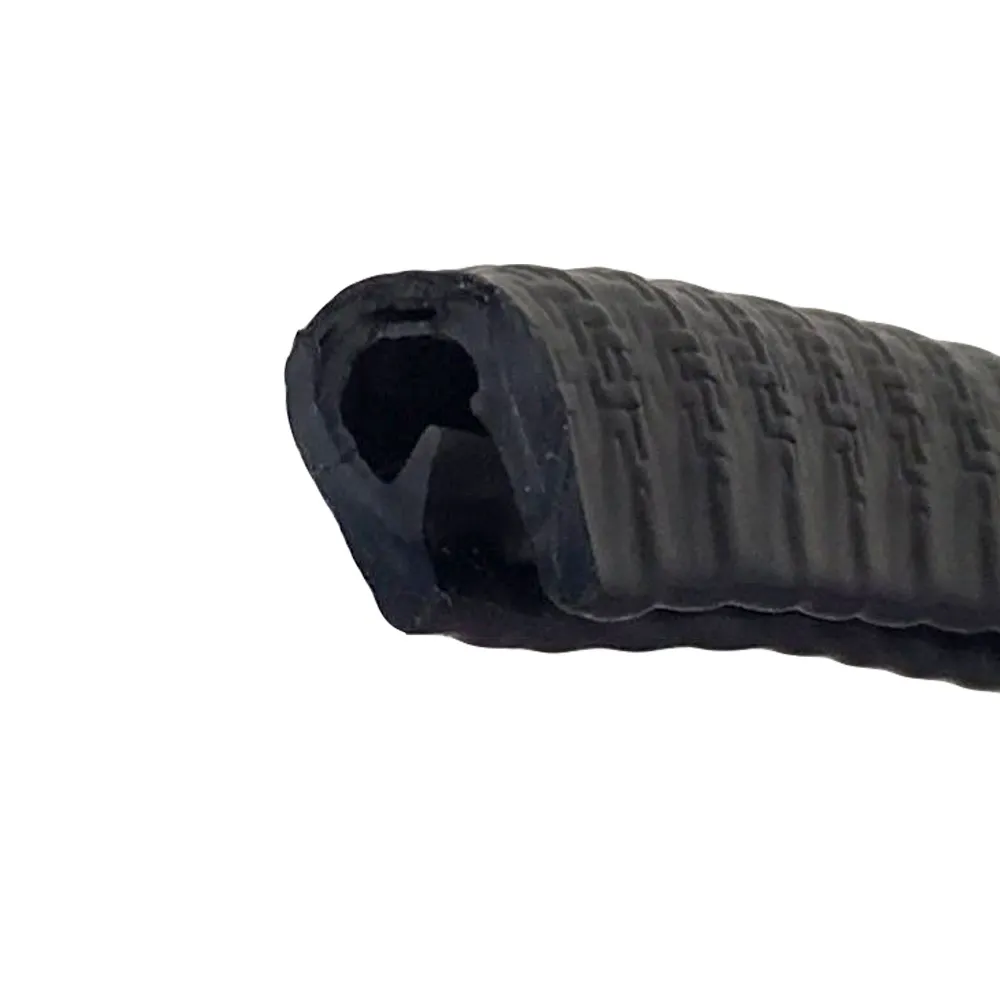

No. 063 Pinchweld is a flexible U-channel edge protector designed to cover, protect and finish exposed sheet-metal and panel edges. Its integrated metal-caged construction helps the channel grip securely to compatible edges while remaining flexible enough to follow curves and irregular profiles. The black finish provides a clean, professional appearance across automotive, fabrication and general industrial installations.
Featuring compact 6.5 x 9.5mm overall profile dimensions and a grip range of 1.0–2.5mm, this pinchweld is suitable for a variety of thin panels and sheet materials. The UV-stable construction supports use in weather-exposed applications, while compliance is claimed with applicable MVSS/FMVSS requirements. Supplied in cut lengths and sold by the metre, it allows the required quantity to be ordered with minimal unnecessary material.
Key Features
- Flexible U-channel edge-protection profile
- Metal-caged construction provides a secure grip
- Protects exposed sheet-metal and panel edges
- Creates a neat and finished appearance
- Follows curves and irregular edge profiles
- Compact 6.5 x 9.5mm profile
- Suitable for edges from 1.0–2.5mm thick
- UV-stable for weather resistance
- Black finish suits a wide range of installations
- Supplied in cut lengths
- Sold by the metre
Applications
- Exposed sheet-metal edges
- Vehicle body panels
- Automotive interior finishing
- Machinery panels and guards
- Equipment enclosures
- Fabricated metal panels
- Cabinet and access-panel edges
- Trailer and caravan fit-outs
- Marine and transport equipment
- General edge protection and finishing
Specifications
- Product Type: Flexible pinchweld edge trim
- Overall Profile Dimensions: 6.5 x 9.5mm
- Grip Range: 1.0–2.5mm
- Construction: Metal-caged flexible U-channel
- Weather Resistance: UV-stable
- Compliance Claimed: MVSS/FMVSS requirements
- Colour: Black
- Supply Format: Cut length
- Application: Protecting and finishing exposed sheet-metal and panel edges
