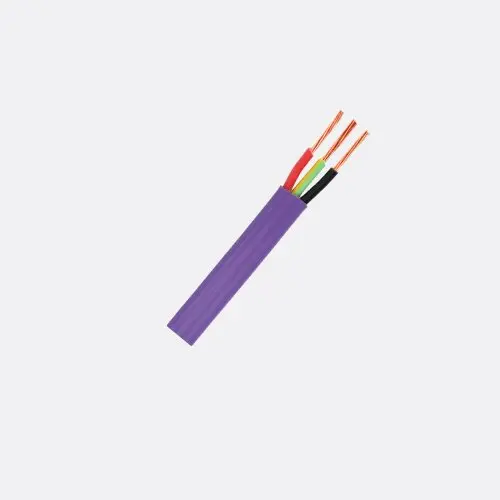

Non-migratory Thermoplastic Sheathed (TPS) Flat

Applications: For use in applications where the cable will be touching polystyrene, polyurethane and other similar thermal insulations. Standard TPS/PVC cable insulation can be compromised by a chemical reaction if it is in contact with polystyrene. The plasticiser will slowly leach out of the cable over time and cause the cable’s PVC material to become harder, more brittle and prone to cracking. TYCAB non migratory cable can be installed in contact with materials such as polystyrene and polyurethane. Suitable applications include Caravans, Cold Rooms, Transportable Buildings and Wall or Roofing insulation materials.

Conductor: OXYGEN FREE Plain Copper Wire to AS/NZS 1125

Insulation: RoHS Compliant Non Migratory V-90 P.V.C. to AS/NZS 3808

Core Colours: Red, Black, Light Green / Yellow

Sheath: RoHS Compliant Non Migratory 3V-90 P.V.C. to AS/NZS 3808

Sheath Colour: Violet

Packs: 100 metres - other packs by request
