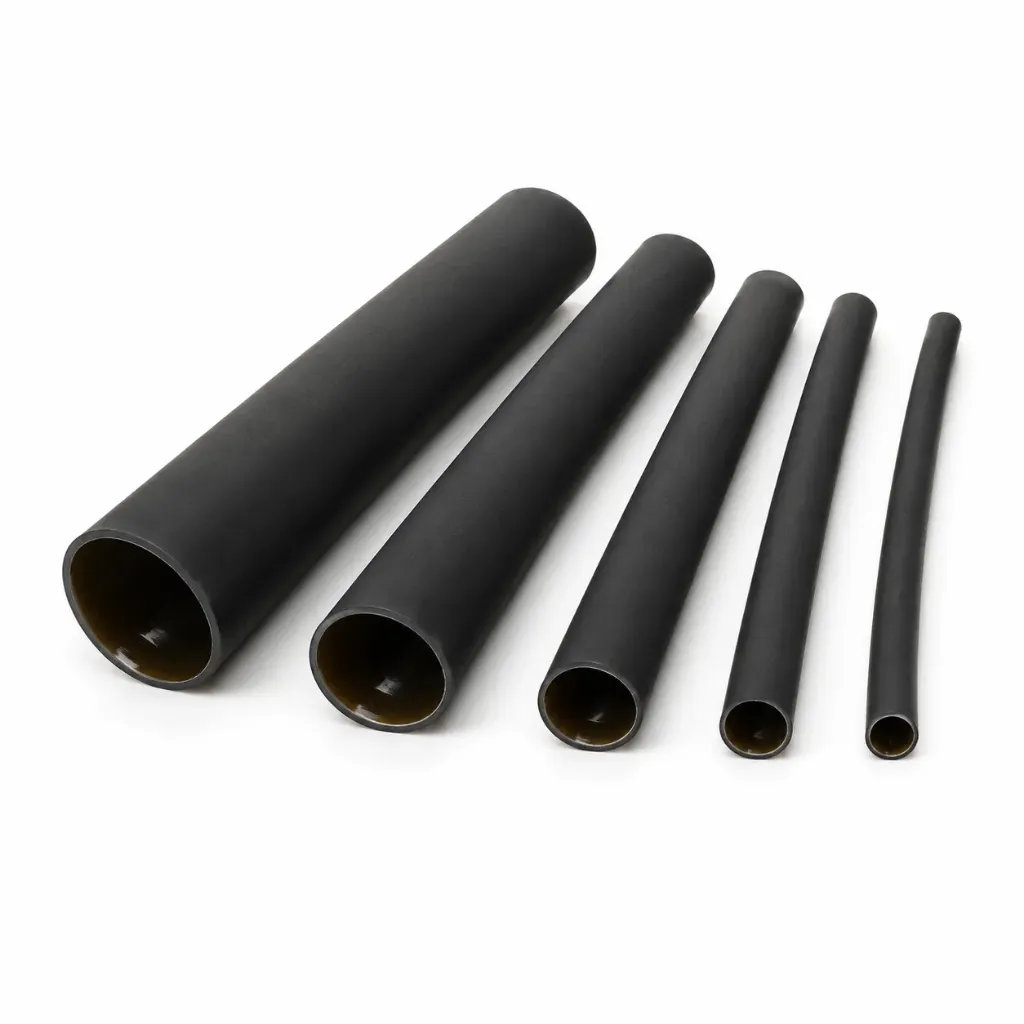

This Medium-Wall Heat Shrink Tubing provides electrical insulation, mechanical protection and environmental sealing for low-voltage cable joints and terminations. Its shrink ratio of up to 4:1 allows each size to accommodate a broad range of cable diameters and irregular profiles, while the medium-wall construction provides additional support in demanding applications.
Manufactured from UV-resistant, halogen-free cross-linked polyolefin, the tubing incorporates a thermoplastic adhesive liner that activates during installation. The adhesive bonds to the cable surface to create a watertight seal against moisture, humidity, contaminants and environmental exposure, making the tubing suitable for outdoor, underground, industrial and mining applications.
Key Features
- Shrink ratio of up to 4:1
- Medium-wall construction
- Thermoplastic adhesive liner
- Creates a watertight environmental seal
- Protects against moisture, humidity and contaminants
- UV-resistant black construction
- Halogen-free cross-linked polyolefin
- Provides electrical insulation and mechanical protection
- Suitable for irregular cable and connector profiles
- Adhesive activates as the tubing shrinks
- Operating temperature from -55°C to +110°C
- Ten sizes covering supplied diameters from 12mm to 140mm
- Supplied in convenient 1.2m lengths
- Suitable for outdoor and underground installation
- RoHS compliant
Applications
- Low-voltage cable joints
- Cable terminations
- Electrical cable repairs
- Outdoor cable installations
- Underground cable installations
- Cable connector sealing
- Moisture protection
- Mechanical cable protection
- Utility and infrastructure networks
- Mining and processing facilities
- Construction and industrial electrical work
- Automotive and equipment wiring
- Switchboard and control-panel wiring
- General electrical maintenance
Specifications
- Product type: Medium-wall adhesive-lined heat shrink tubing
- Material: Cross-linked polyolefin
- Adhesive: Thermoplastic inner adhesive liner
- Colour: Black
- Shrink ratio: Up to 4:1
- Length: 1.2m per piece
- Operating temperature: -55°C to +110°C
- Minimum shrink temperature: +120°C
- Adhesive softening point: +85°C
- Dielectric strength: 18kV/mm
- Insulation class: Class A to VDE 0530
- Longitudinal change after shrinkage: ±10% maximum
- Halogen-free: Yes
- UV resistant: Yes
- RoHS compliant: Yes
- Flammability: Tested to ASTM D2671; not flame retardant
