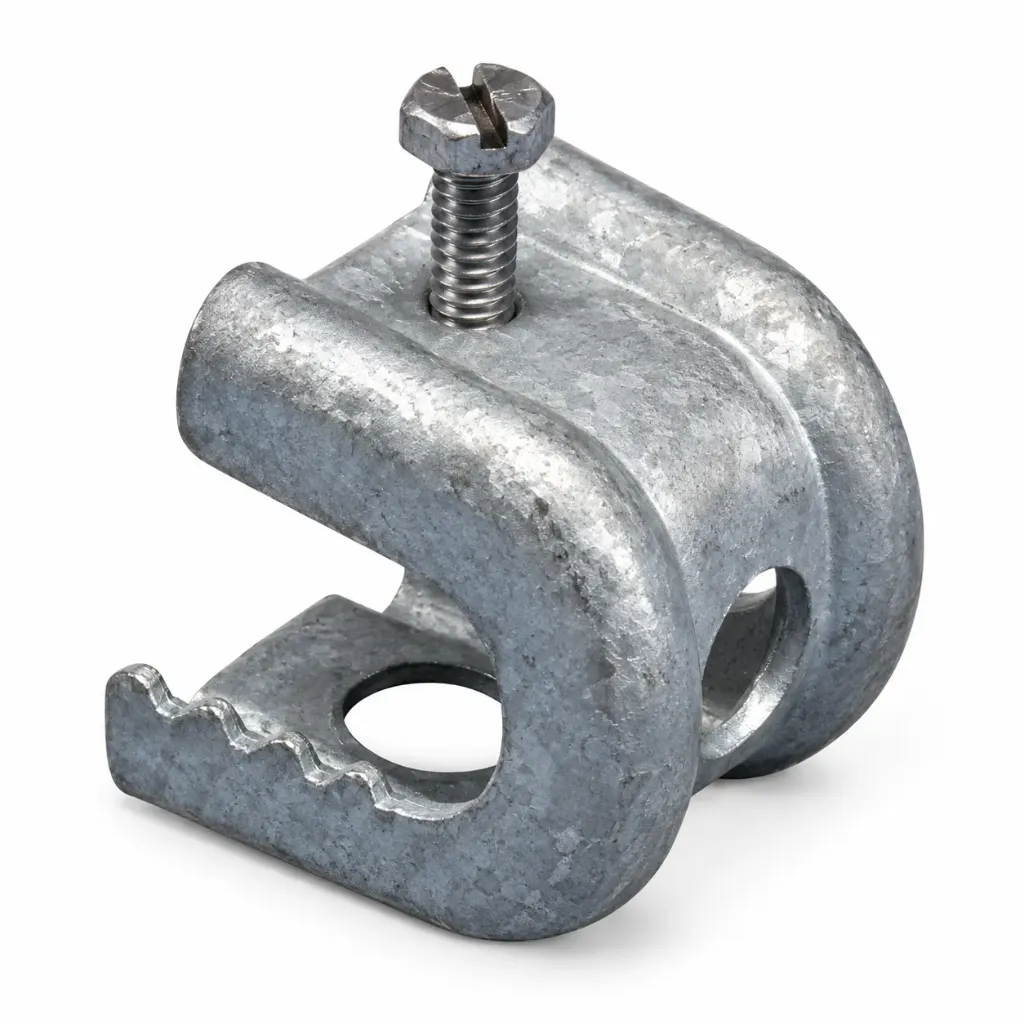

This Hot-Dip Galvanized Conduit Beam Clamp Range provides a secure structural attachment point for supporting conduit, cable and pipe systems from steel beams. Three clamp sizes accommodate beam-flange thicknesses from 4mm through to 44mm, making the range suitable for commercial, industrial and infrastructure installations.
Each multi-function clamp is manufactured from steel with a hot-dip galvanized finish for improved corrosion protection. Two 14mm mounting holes positioned at 90 degrees provide flexible accessory orientation, while the clamping screw secures the unit directly to the sloped side of an I-beam without drilling or welding.
Key Features
- Multi-function structural beam clamp
- Supports conduit, cable and pipe installations
- Suitable for beam flanges from 4mm to 44mm
- Hot-dip galvanized steel construction
- Improved corrosion resistance for demanding environments
- Installs without drilling or welding the structural beam
- Two 14mm mounting holes
- Mounting holes offset by 90 degrees
- Supports multiple accessory orientations
- Compatible with suitable cable, conduit and pipe clamps
- Compatible with suitable square washers
- Clamping screws supplied in M6 or M8 sizes
- Published tightening torque of 3Nm
- Static load rating of 1,100N
- Approximate load rating of 112kg
- Suitable for indoor and outdoor infrastructure projects
Applications
- Conduit support from structural beams
- Electrical cable-support systems
- Pipe-support installations
- Cable-management systems
- Industrial electrical installations
- Commercial building services
- Warehouses and manufacturing facilities
- Mining and processing facilities
- Mechanical-services installations
- Infrastructure projects
- Suspended electrical services
- Retrofitting support points to existing beams
- Construction and maintenance work
Specifications
- Product type: Multi-function conduit beam clamp
- Material: Steel
- Finish: Hot-dip galvanized
- Available flange-thickness ranges: 4–20mm, 17–30mm and 30–44mm
- Number of mounting holes: 2
- Mounting-hole diameter: 14mm
- Mounting-hole orientation: Offset by 90 degrees
- Published tightening torque: 3Nm
- Static load rating: 1,100N
- Approximate load rating: 112kg
- Installation method: Setscrew attachment to structural beam flange
- Compatible accessories: Suitable cable, conduit and pipe clamps or square washers
- 333CIS203 flange-thickness range: 4–20mm
- 333CIS203 screw diameter: M6
- 333CIS203 screw length: 25mm
- 333CIS303 flange-thickness range: 17–30mm
- 333CIS303 screw diameter: M8
- 333CIS303 screw length: 30mm
- 333CIS453 flange-thickness range: 30–44mm
- 333CIS453 screw diameter: M8
- 333CIS453 screw length: 30mm
