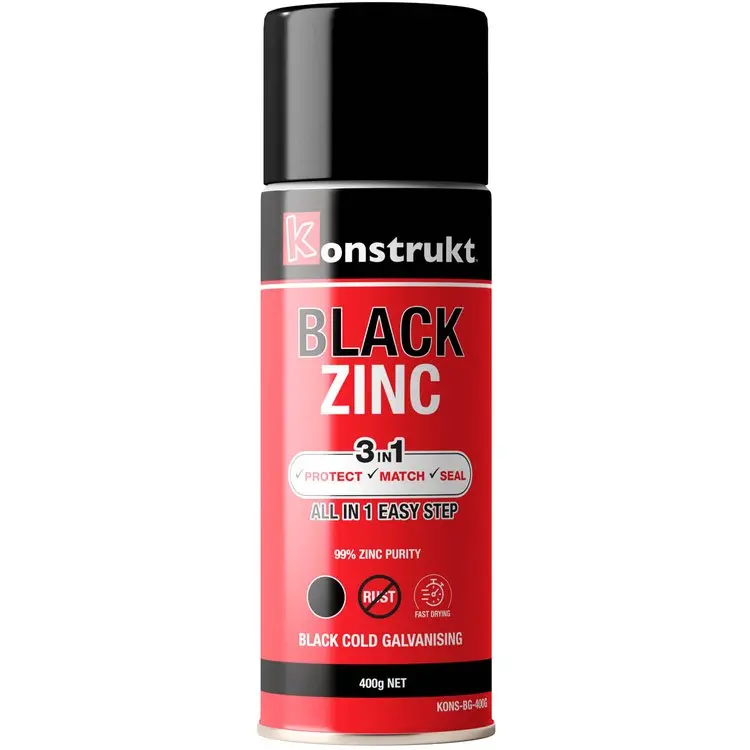

Konstrukt 3-in-1 Galvanising Spray is a range of metallic zinc aerosol coatings developed for corrosion protection, priming, finishing and galvanised touch-up work. The range includes Grey, Silver and Black options to suit different stages and finishes. Silver and Black are fast-drying epoxy-based coatings that provide adhesion, corrosion resistance and long-lasting durability as an anti-corrosive primer and topcoat. They are also suitable for touching up welded areas on galvanised products.
Grey Zinc is a zinc-rich, heavy-duty corrosion-inhibitive primer containing 99% pure zinc and more than 91% metallic zinc pigment in the dry film. It provides galvanic protection to weld joints and is recommended beneath Silver or Black Zinc for longer-term protection and highly corrosive conditions. All three variants are supplied in 400 g aerosols with adjustable spray patterns and common drying times. Suitable applications and preparation requirements vary by colour and substrate.
Key Features
-
Range of three metallic zinc aerosol coatings
-
Available in Grey, Silver and Black
-
Provides corrosion protection for metal surfaces
-
Suitable for galvanised touch-up work
-
Silver and Black provide primer and topcoat functions
-
Silver and Black use fast-drying epoxy-based formulations
-
Grey provides heavy-duty galvanic protection
-
Grey contains 99% pure zinc
-
More than 91% metallic zinc pigment in the Grey dry film
-
Suitable for protecting weld joints
-
Adjustable horizontal and vertical spray patterns
-
Supplied in 400 g aerosol cans
Applications
-
Corrosion protection of metal surfaces
-
Touch-up coating for welded galvanised products
-
Protection of weld joints
-
Metal fabrication
-
Priming steel and wrought iron
-
Coating galvanised iron
-
Anti-corrosive priming
-
Silver or Black finish coating
-
Non-ferrous metals with the appropriate primer
-
Maintenance of galvanised surfaces
Specifications
-
Product Type: Metallic zinc aerosol coating
-
Can Size: 400 g aerosol
-
Finish: Grey – matt; Silver – metallic; Black – satin
-
Consistency: Liquid
-
Propellant: Dimethyl ether
-
Grey Zinc Composition: 99% pure zinc with more than 91% metallic zinc pigment in the dry film
-
Silver and Black Formulation: Epoxy-based metallic zinc coating
-
Suitable Ferrous Surfaces: Steel, wrought iron and galvanised iron
-
Additional Silver and Black Surfaces: Aluminium, alloys, ZINCALUME® and stainless steel with an appropriate primer
-
Ideal Application Temperature: 10–40°C
-
Coverage – Grey and Silver: Approximately 2 m² per can, depending on the surface and overspray
-
Coverage – Black: Approximately 2.5 m² per can, depending on the surface and overspray
-
Touch Dry: 20 minutes at 25°C
-
Recoat Time: 1 hour
-
Hard Dry: 16–24 hours
-
Spraying Distance: Approximately 20–25 cm
-
Spray Pattern: Adjustable horizontal and vertical nozzle settings
-
Grey Primer Dry Time Before Silver or Black: 4–6 hours
-
Standards & Compliance: Grey Zinc surface preparation recommendation – AS 1627.4 Class 2
