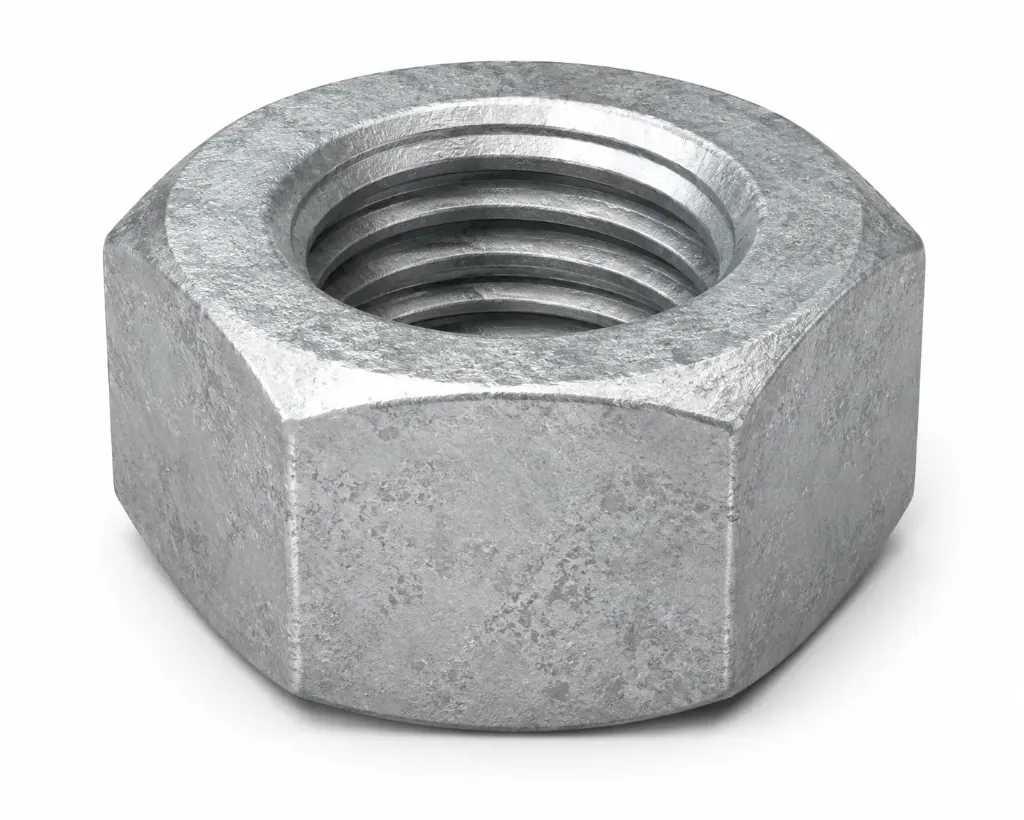

Class 8 Hex Nuts are high-strength metric fasteners designed for use with compatible coarse-thread bolts and set screws. Manufactured to AS 1112.1, the range covers M6, M8, M10 and M12 sizes, with each nut featuring the standard coarse thread pitch for its nominal diameter. Class 8 mechanical properties make these nuts suitable for demanding construction, fabrication, machinery and equipment-assembly applications when selected in accordance with the governing joint design.
The hot-dip galvanised finish complies with AS/NZS 1214 and has a typical coating thickness of 50 micrometres, providing high corrosion resistance for long-term outdoor applications. The range is normally selected for use with compatible property class 8.8 bolts, subject to the relevant connection standard and engineering requirements. Each size uses a standard metric spanner or socket, supporting straightforward installation and maintenance in structural and general industrial assemblies.
Key Features
- Property Class 8 hex nuts
- Manufactured to AS 1112.1
- Standard metric coarse threads
- Hot-dip galvanised for high corrosion resistance
- Galvanised to AS/NZS 1214
- Typical coating thickness of 50 micrometres
- Suitable for long-term outdoor applications
- Available in M6, M8, M10 and M12 sizes
- Suitable for compatible Class 8.8 fasteners
- Standard metric spanner and socket sizes
- Suitable for construction and industrial assemblies
Applications
- Steel fabrication
- Structural connections
- Outdoor construction
- Machinery assembly
- Equipment installation
- Brackets and support frames
- Industrial maintenance
- Fencing and gate construction
- General engineering
- Compatible Class 8.8 bolted assemblies
Specifications
- Product Type: Metric hex nut
- Property Class: Class 8
- Product Standard: AS 1112.1
- Finish: Hot-dip galvanised
- Galvanising Standard: AS/NZS 1214
- Typical Coating Thickness: 50 micrometres
- Thread Type: Metric coarse
- Available Sizes: M6, M8, M10 and M12
- NH08GCM06 Thread: M6 x 1.00
- NH08GCM06 Spanner Size: 10mm
- NH08GCM06 Minimum Proof Load: 17.49kN
- NH08GCM08 Thread: M8 x 1.25
- NH08GCM08 Spanner Size: 13mm
- NH08GCM08 Minimum Proof Load: 31.84kN
- NH08GCM10 Thread: M10 x 1.50
- NH08GCM10 Spanner Size: 16mm
- NH08GCM10 Minimum Proof Load: 50.46kN
- NH08GCM12 Thread: M12 x 1.75
- NH08GCM12 Spanner Size: 18mm
- NH08GCM12 Minimum Proof Load: 74.18kN
