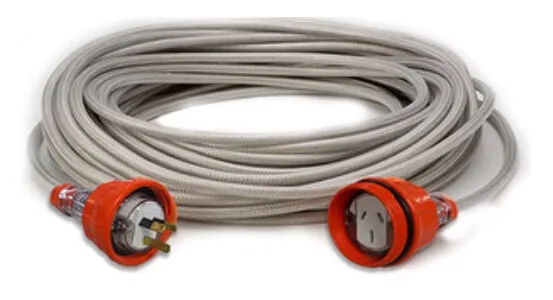

BXLIP56 Braided Extension Leads provide a flexible and mechanically protected temporary power connection for demanding commercial, industrial and worksite environments. Available with either 10A or 15A moulded plugs and sockets, the range combines IP56-rated connections with lead lengths from 5m to 30m.
An 80% EMC-compliant tinned copper braid screen provides additional mechanical protection and is earthed to support fault protection. A neon indicator clearly identifies when the lead is live, while the flexible cable construction helps simplify handling, positioning and storage during regular workplace use.
Key Features
- Heavy-duty braided extension lead
- IP56-rated plug and socket connections
- Available with 10A or 15A moulded plugs and sockets
- 80% tinned copper braid screen
- Screened construction is EMC compliant
- Earthed braid supports fault protection
- Braid provides additional mechanical protection
- Neon indicator identifies when the lead is live
- Excellent cable flexibility
- Available in multiple lengths
- Clear outer sheath
- Each lead is labelled with its length and product code
Applications
- Construction and civil worksites
- Industrial plants and facilities
- Workshops and maintenance areas
- Manufacturing environments
- Temporary power distribution
- Portable tools and equipment
- Commercial service work
- Engineering and fabrication workshops
- Outdoor work areas requiring compatible IP56 connections
- General heavy-duty extension-lead applications
Specifications
- Product Type: Heavy-duty braided extension lead
- Connection Rating: IP56
- Available Plug and Socket Ratings: 10A and 15A
- Available Lengths: 5m, 10m, 15m, 20m, 25m and 30m
- Conductors: Tinned copper wire
- Nominal Conductor Areas: 3 × 1.5mm² and 3 × 2.5mm², depending on lead variation
- Conductor Strand Configurations: 30/0.25 and 50/0.25, depending on conductor size
- Cable Current Ratings: 15A or 25A, depending on conductor size
- Cable Voltage Rating: 0.6/1kV
- Insulation: PVC V75
- Outer Sheath: Clear V75
- Screen: 80% tinned copper braid
- Live Indication: Neon indicator
- Labelling: Lead length and product code
- Amperage Reference: Cable ratings specified in accordance with AS/NZS 3008.1.1:2009 Table 14 for flexible spaced cables
