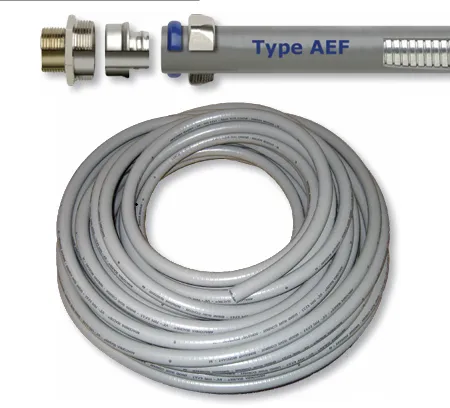

Flexible Liquid Tight Conduit is designed to provide superior mechanical protection for electrical cables in demanding industrial, commercial and outdoor environments where flexibility, durability and environmental sealing are essential. Featuring a flexible galvanized steel core with a durable grey thermoplastic PVC outer jacket, it offers excellent protection against dust, water, oils, sunlight and mechanical damage while allowing easy routing around machinery, equipment and confined installation spaces.
Suitable for a wide range of electrical installations, Flexible Liquid Tight Conduit combines the strength of a metallic conduit with the versatility of a flexible system. When installed with approved liquid-tight fittings, it provides an IP67-rated cable protection solution, making it ideal for applications exposed to moisture, vibration and harsh operating conditions. The smooth PVC outer cover provides additional abrasion resistance while maintaining a neat appearance for exposed installations.
Key Features
-
Flexible metallic conduit with liquid-tight PVC outer jacket
-
Provides reliable cable protection in harsh environments
-
Dustproof and watertight when installed with approved fittings
-
Flexible galvanized steel core for excellent mechanical strength
-
UV and sunlight-resistant grey thermoplastic PVC cover
-
Smooth outer surface for clean exposed installations
-
Resistant to oils, moisture and general environmental contaminants
-
High compression, tensile and impact resistance
-
Suitable for indoor and outdoor installations
-
Compatible with standard liquid-tight conduit fittings
-
Marked for easy identification during installation
Applications
-
Industrial automation
-
Electrical control panels
-
Machinery and equipment
-
Manufacturing facilities
-
HVAC systems
-
Pump and motor connections
-
Outdoor electrical installations
-
Commercial buildings
-
Process plants
-
General cable protection
Specifications
-
Type: Flexible Liquid Tight Conduit
-
Construction/Materials: Flexible galvanized steel core with thermoplastic PVC outer cover
-
Colour: Grey
-
Ingress Protection: IP67 (when installed with approved connectors)
-
Operating Temperature Range: -20°C to +80°C
-
Available Coil Lengths: 7.62 m, 15 m and 30 m (model dependent)
-
Compression Resistance: Heavy (1250 N)
-
Impact Resistance: Heavy (6 J)
-
Tensile Strength: Heavy (1000 N)
-
Bending Resistance: Flexible
-
Electrical Properties: With continuity and insulating characteristics
-
Resistance to Solid Foreign Objects: Dustproof
-
Resistance to Water Ingress: Watertight (1 meter, immersion up to 30 minutes)
-
Corrosion Resistance: Medium/High (internal and external)
-
Flame Performance: Non-flame propagating
-
Compatible Fittings: Standard liquid-tight conduit fittings (straight, 45° and 90°)
