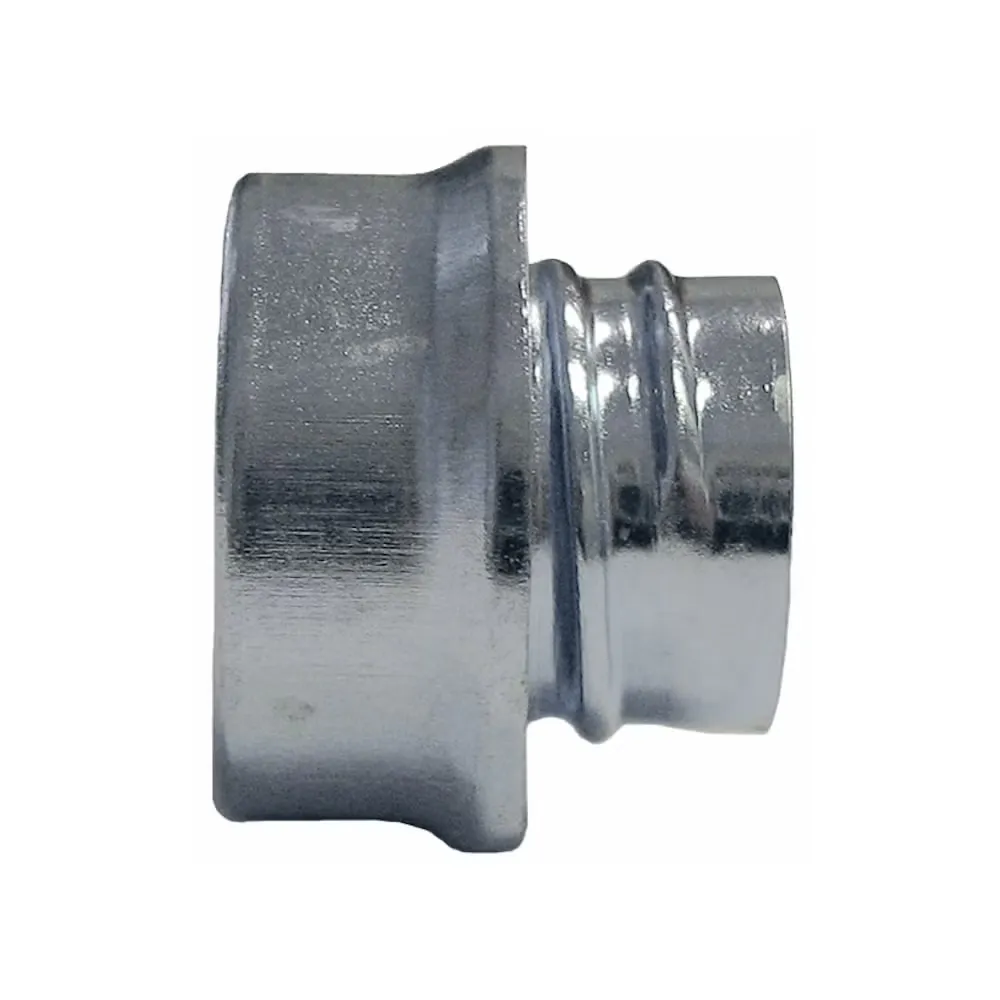

Grounding Cones, also known as Conduit Ferrules, are designed to provide a secure and protective end termination for flexible liquid tight metallic conduit (Anaconda). Installed by threading into the end of the conduit, they prevent splitting and deformation of the conduit while providing a smooth internal entry point that protects cables from abrasion during installation and operation.
Suitable for use with most flexible metallic conduit systems, Grounding Cones improve cable protection and assist in achieving a professional conduit termination. Manufactured from corrosion-resistant materials, they are available in a range of conduit sizes to suit common electrical installations and are compatible with standard liquid tight conduit fittings.
Key Features
-
Designed for end termination of flexible liquid tight metallic conduit
-
Also known as conduit ferrules or grounding cones
-
Prevents splitting and damage to conduit ends
-
Protects cables from abrasion during installation and service
-
Smooth internal entry for safe cable routing
-
Threaded design locks securely into conduit
-
Compatible with most metallic flexible conduit systems
-
Suitable for use with compatible liquid tight conduit fittings
-
Corrosion-resistant construction
-
Available in a range of conduit sizes
Applications
-
Flexible liquid tight conduit systems
-
Industrial electrical installations
-
Commercial electrical installations
-
Switchboards
-
Control panels
-
Machinery wiring
-
Outdoor electrical equipment
-
General cable protection
Specifications
-
Type: Grounding Cone / Conduit Ferrule
-
Application: End termination for flexible liquid tight metallic conduit
-
Compatible Conduit: Flexible liquid tight metallic conduit (Anaconda type)
-
Installation Method: Threaded into conduit end
-
Available Conduit Sizes: 16 mm, 20 mm, 25 mm, 32 mm, 40 mm, 50 mm and 63 mm
-
Maximum Internal Cable Diameter: 10.2 mm (16 mm), 13.5 mm (20 mm), 18.5 mm (25 mm), 23.5 mm (32 mm), 31.8 mm (40 mm), 36.8 mm (50 mm), 47.8 mm (63 mm)
-
Material (16–32 mm): Pressed Mild Steel
-
Finish (16–32 mm): Zinc Plated
-
Material (40–63 mm): Machined Brass
-
Finish (40–63 mm): Nickel Plated
-
Corrosion Resistance: Yes
-
Function: Prevents conduit splitting and protects cable entry/exit
-
Standards & Compliance: Suitable for use with compatible liquid tight conduit systems
