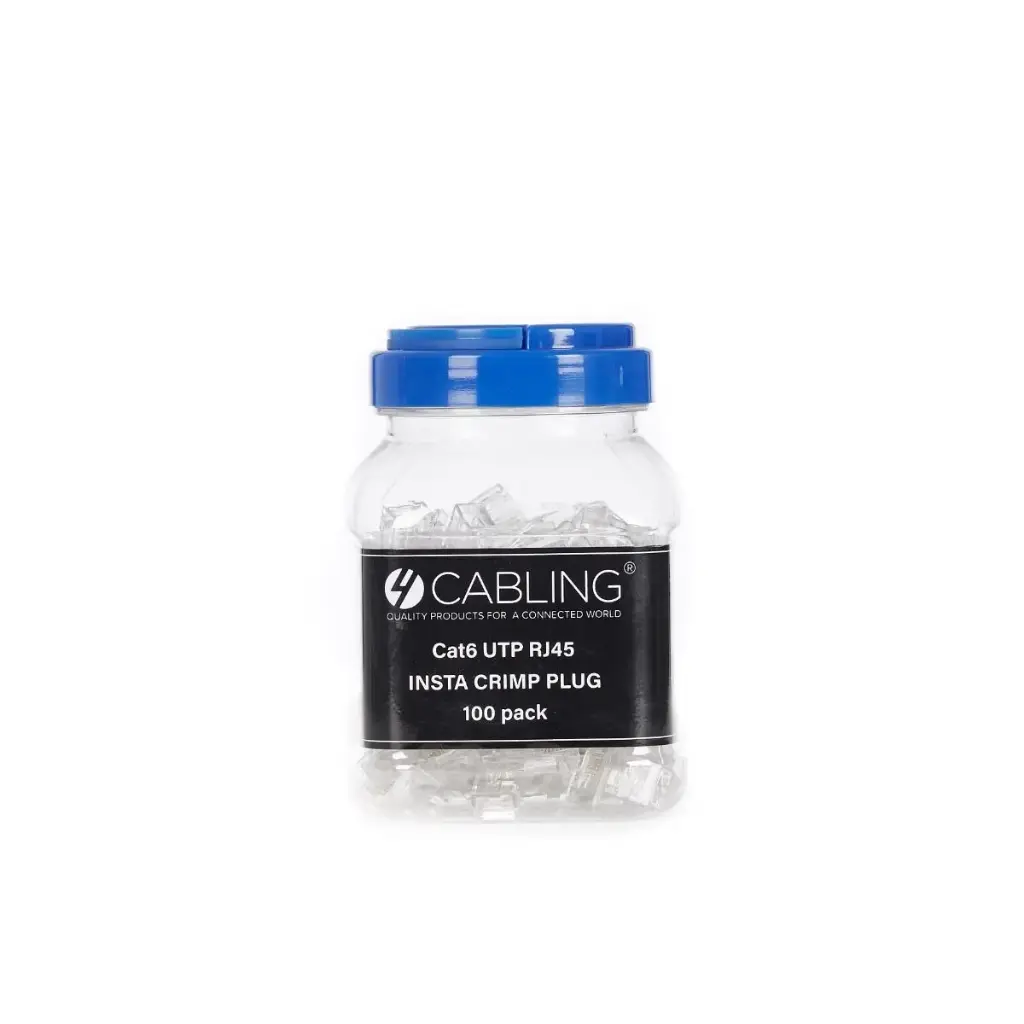

CAT6 UTP RJ45 Insta Crimp Plug 100 pack
Insta Crimp Plugs. Simplifies twisted pairs termination by allowing the wires to be inserted through the connector and out the front. This feature allows the technician to verify the proper wiring order.
Electrical performance of the termination is optimised by pulling the connector down over the cable jacket and seating it tightly in the rear of the connector. By reducing the distance between the wire twists and contacts, performance is optimised!
4Cabling Insta Crimp Tool Required.
Features & Spec:
- RoHS compliant
- 50-micron gold plated contacts
- Suitable for both solid and stranded core cables
- Certification: UL, IEC 60603-7, FCC compliant
- UL applications: Max.250V, AT 2Amps
- Dielectric Withstanding Voltage: 1000V AC
- Insulation Resistance: 100MΩ
- Termination: Max. Resistance 20mΩ
Instructions:
- Strip the outer cable sheath approx. 30mm
- Cut off any separator or nylon string flush with cable sheath being careful not to nick conductors
- Fan out 8 wires and arrange in colour code 568A. The 8 wires should be flat and neatly lined up next to one another.
- Insert through crimp tool with excess wire protruding out the front
- Insert plug into the correct position on the crimping tool
- Squeeze the tool firmly, this will terminate the wires and cut off any excess cable length
